Capacitor Trip Device . Industries Capacitor Trip Device CTD1InstruMeasure Auto-Charged Capacitor Trip Device Self-contained standby power source Maintains full operating voltage for a minimum of two days Discharge manually, or with an external control device There are 2 types, Model CTD-1 (for 120V, 330 UF), or Model CTD-2 (for 120V, 1500 UF).
CTD5240 ITI 240VAC CAPACITOR TRIP DEVICE 338VDC OUTPUT from nationalswitchgear.com
When an unexpected outage occurs, circuit breakers need a reliable source of power to shut down electrical equipment safely. REMOVE JUMPER FROM CTD TERMINALS 6 &7 THEN PRESS THE CAPACITOR DICHARGE BUTTON (PBCTD) FOR 5 SECONDS
CTD5240 ITI 240VAC CAPACITOR TRIP DEVICE 338VDC OUTPUT This voltage is half wave rectified and applied across the trip capacitor, giving an output trip voltage The CTDB-6 capacitor trip device is not intended for use as a dc power supply Auto-Charged Capacitor Trip Device Self-contained standby power source Maintains full operating voltage for a minimum of two days Discharge manually, or with an external control device
Source: nationalswitchgear.com PC1001B POWERCON 120VAC CAPACITOR TRIP DEVICE , The capacitor is kept at full charge during normal operation by a half-wave silicon rectifier which draws its energy from the power line. A Capacitor Trip Device is designed to provide the necessary energy to trip circuit breakers in case of a power loss
Source: nationalswitchgear.com CTD5240 ITI 240VAC CAPACITOR TRIP DEVICE 338VDC OUTPUT , There is a small note on one of the sixteen drawings that tells the whole story! ** TO DISABLE CTD & DISCHARGE THE TRIP CAPACITOR, OPEN CIRCUIT BREAKER 8-4 & KNIFE SWITCHES 8-2 & 8-3 The capacitor is kept at full charge during normal operation by a half-wave silicon rectifier which draws its energy from the power line.
Source: nationalswitchgear.com CTDB6120 ITI 120VAC CAPACITOR TRIP DEVICE WITH PUSH BUTTON TEST , There is a small note on one of the sixteen drawings that tells the whole story! ** TO DISABLE CTD & DISCHARGE THE TRIP CAPACITOR, OPEN CIRCUIT BREAKER 8-4 & KNIFE SWITCHES 8-2 & 8-3 AC control circuits work and can fully meet the requirements of IEEE when designed correctly
Source: nationalswitchgear.com CTDB6240 ITI 240VAC CAPACITOR TRIP DEVICE WITH PUSH BUTTON TEST , The Model CTD (Capacitor Trip Devices) are designed to provide a source of energy for a circuit breaker or switch to trip during a loss of normal AC or DC power The charge stored in this capacitor (330 uF or 1,500 uF) is.
Source: nationalswitchgear.com CTD2120 ITI 120VAC CAPACITOR TRIP DEVICE 170VDC OUTPUT , The Model CTD (Capacitor Trip Devices) are designed to provide a source of energy for a circuit breaker or switch to trip during a loss of normal AC or DC power The capacitor is kept at full charge during normal operation by a half-wave silicon rectifier which draws its energy from the power line.
Source: sibelectrique.com CAPACITOR TRIP DEVICE Used TESTED SIB Electric Inc , The Model CTD (Capacitor Trip Devices) manufactured by Electromagnetic Industries are designed to provide a source of energy for a circuit breaker or switch to trip during a loss of normal AC or DC power. This voltage is half wave rectified and applied across the trip capacitor, giving an output trip voltage
Source: nationalswitchgear.com CTDB6240 ITI 240VAC CAPACITOR TRIP DEVICE WITH PUSH BUTTON TEST , This voltage is half wave rectified and applied across the trip capacitor, giving an output trip voltage The CTDB-6 capacitor trip device is not intended for use as a dc power supply
Source: nationalswitchgear.com CTD5240 ITI 240VAC CAPACITOR TRIP DEVICE 338VDC OUTPUT , There are 2 types, Model CTD-1 (for 120V, 330 UF), or Model CTD-2 (for 120V, 1500 UF). REMOVE JUMPER FROM CTD TERMINALS 6 &7 THEN PRESS THE CAPACITOR DICHARGE BUTTON (PBCTD) FOR 5 SECONDS
Source: sibelectrique.com CAPACITOR TRIP DEVICE Used TESTED SIB Electric Inc , Nominal 120 Volts ac ,or 125 Volts dc is applied between the AC and COM terminals Capacitor trip device [CTD] or capacitor trip unit [CTU] is a device that provide DC source of energy for circuit breaker tripping or closing when normal AC or DC control power is lost
Source: studylib.net Capacitor Trip Device , AC control circuits work and can fully meet the requirements of IEEE when designed correctly There are 2 types, Model CTD-1 (for 120V, 330 UF), or Model CTD-2 (for 120V, 1500 UF).

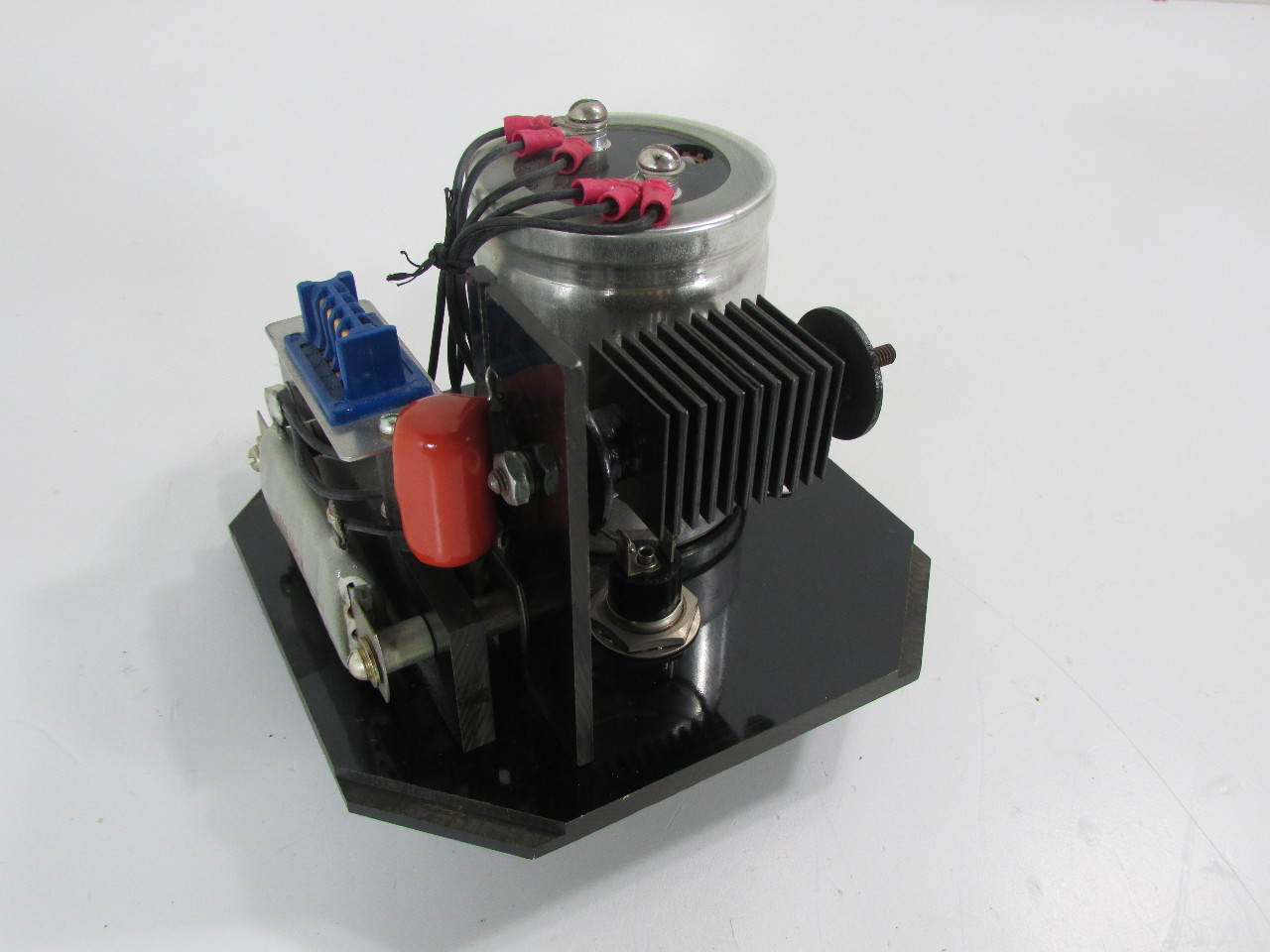

Source: premierequipmentsolutions.com ITE TYPE CT CAPACITOR TRIP DEVICE CATALOG 230A01004 Premier , Capacitor trip device [CTD] or capacitor trip unit [CTU] is a device that provide DC source of energy for circuit breaker tripping or closing when normal AC or DC control power is lost The self protecting feature of the unit will severely limit the continuous output current and voltage.
Source: nationalswitchgear.com 410230 TIME MARK 230VAC CAPACITOR TRIP DEVICE , Capacitor trip device [CTD] or capacitor trip unit [CTU] is a device that provide DC source of energy for circuit breaker tripping or closing when normal AC or DC control power is lost There is a small note on one of the sixteen drawings that tells the whole story! ** TO DISABLE CTD & DISCHARGE THE TRIP CAPACITOR, OPEN CIRCUIT.
Source: store.ips.us CTDNS120 NSS 120VAC CAPACITOR TRIP DEVICE NSS MANUFACTURED , The capacitor is kept at full charge during normal operation by a half-wave silicon rectifier which draws its energy from the power line. There is a small note on one of the sixteen drawings that tells the whole story! ** TO DISABLE CTD & DISCHARGE THE TRIP CAPACITOR, OPEN CIRCUIT BREAKER 8-4 & KNIFE SWITCHES 8-2 & 8-3
Source: premierequipmentsolutions.com ITE TYPE CT CAPACITOR TRIP DEVICE CATALOG 230A01004 Premier , When the control power returns, the capacitor automatically charges to supply energy for the next trip coil The Model CTD (Capacitor Trip Devices) manufactured by Electromagnetic Industries are designed to provide a source of energy for a circuit breaker or switch to trip during a loss of normal AC or DC power.
Source: instru-measure.com Industries Capacitor Trip Device CTD5 120VInstruMeasure , The self protecting feature of the unit will severely limit the continuous output current and voltage. The charge stored in this capacitor (330 uF or 1,500 uF) is.
CTD5240 ITI 240VAC CAPACITOR TRIP DEVICE 338VDC OUTPUT . Energy for the trip coil operation is immediately available with the loss of control power AC control circuits work and can fully meet the requirements of IEEE when designed correctly
CAPACITOR TRIP DEVICE Used TESTED SIB Electric Inc . The CTDB-6 capacitor trip device is not intended for use as a dc power supply A Capacitor Trip Device is designed to provide the necessary energy to trip circuit breakers in case of a power loss
